NDK Series
Advanced Cooling Technology That Protects Your Process
Üçsan Closed Circuit Cooling Towers completely isolate the process fluid from the external environment, providing maximum system reliability, high energy efficiency, and extended equipment life. Thanks to the heat transfer achieved through a high-efficiency coil system, the process fluid remains clean, while the risks of scaling and corrosion are minimized. Designed for industrial processes, HVAC systems, and applications requiring precise temperature control, our cooling towers combine low operating costs, reliable operation, and superior performance.
Key Advantages
- Closed-circuit design that completely prevents the process fluid from coming into contact with the external environment
- Maximum heat transfer through a high-efficiency coil system
- Low water and energy consumption
- Reduced risk of scaling, contamination, and corrosion
- Long equipment service life and low maintenance costs
- Compact and modular design
- Quiet and reliable operation
- Single-cell or multi-cell system options
Operating Capacity

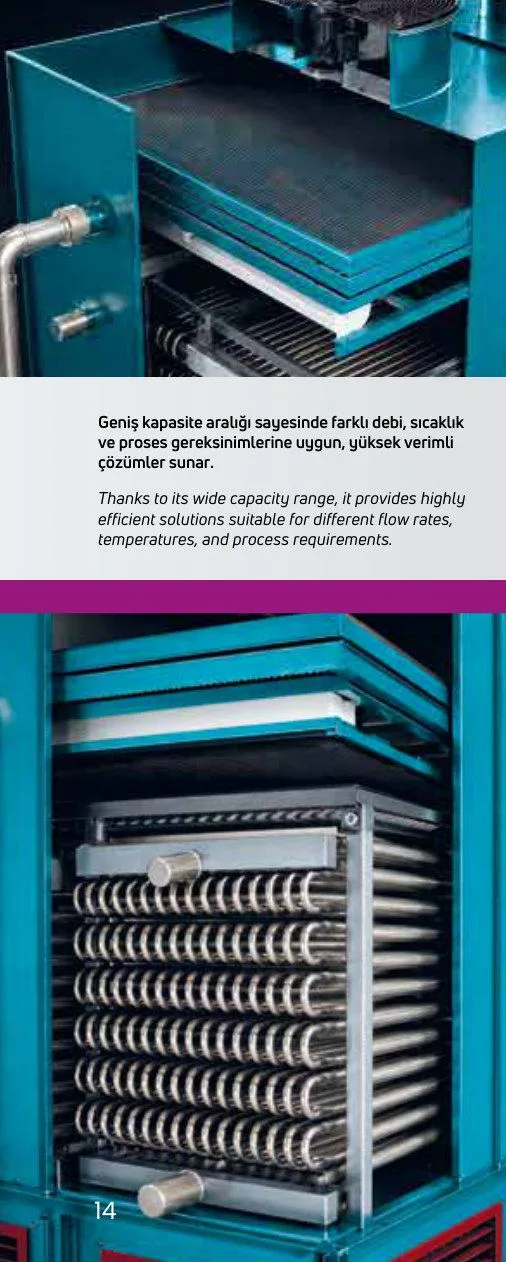

Thanks to its wide capacity range, it provides highly efficient solutions suitable for different flow rates, temperatures, and process requirements.
Installation Advantage
The cooling towers are fully assembled in the factory and delivered ready for transportation. Since no on-site assembly is required, installation time is reduced, labor costs are minimized, and fast commissioning is ensured.
Casing Material Options
The cooling towers can be manufactured with different material options according to operating conditions and corrosion levels.
- 275 g/m² galvanized coated steel sheet
- 304 grade stainless steel
- 316 grade stainless steel
Models
11 / 11
| Model | Width (mm) | Length (mm) | Height (mm) | Number of Fans | Spray Pump (kW) | Dry Weight (kg) | Operating Weight (kg) | Water Inlet/Outlet |
|---|---|---|---|---|---|---|---|---|
| NDK 200 | 1,200 | 3,600 | 3,600 | 1 | 2.2 | 2,800 | 4,350 | 3'' |
| NDK 250 | 1,200 | 3,600 | 3,800 | 1 | 2.2 | 3,500 | 4,950 | 3'' |
| NDK 300 | 1,200 | 3,600 | 4,000 | 1 | 2.2 | 4,200 | 5,900 | 4'' |
| NDK 400 | 2,400 | 3,600 | 3,800 | 2 | 3 | 4,900 | 8,350 | 4'' |
| NDK 500 | 2,400 | 3,600 | 4,000 | 2 | 4 | 6,125 | 9,580 | 2 x 3'' |
| NDK 600 | 2,400 | 3,600 | 4,200 | 2 | 4 | 7,000 | 11,300 | 2 x 4'' |
| NDK 700 | 2,400 | 3,600 | 4,400 | 2 | 4 | 9,250 | 13,570 | 2 x 4'' |
| NDK 800 | 2,400 | 6,600 | 3,900 | 3 | 5.5 | 10,250 | 17,450 | 2 x 4'' |
| NDK 1000 | 2,400 | 6,600 | 4,100 | 3 | 5.5 | 11,650 | 18,850 | 2 x 4'' |
| NDK 1200 | 2,400 | 6,600 | 4,300 | 3 | 7.5 | 13,850 | 21,000 | 2 x 5'' |
| NDK 1400 | 2,400 | 6,600 | 4,500 | 3 | 7.5 | 16,200 | 23,400 | 2 x 5'' |

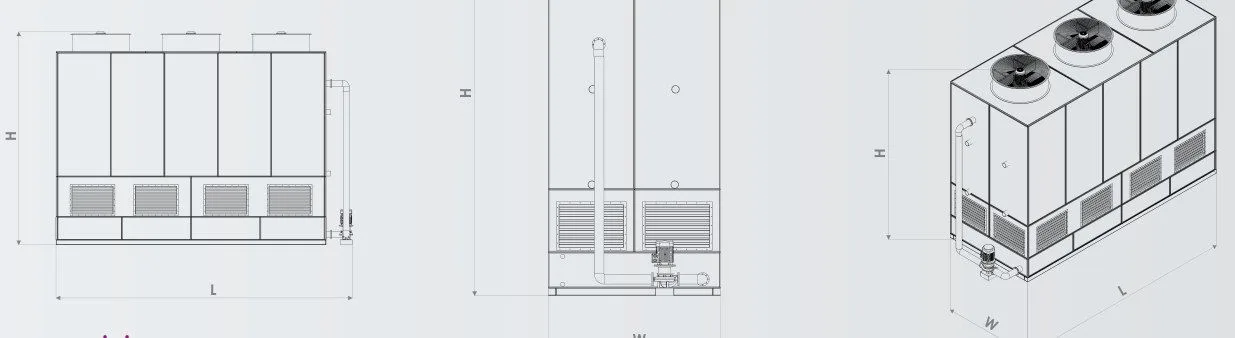

Technical drawing
Photos
NDK Series
Tell us the capacity, operating conditions and site; our engineers will recommend the best solution.
