NK Series · Counterflow Open Circuit Cooling Tower
NK 214
Counterflow Open Circuit Cooling Tower
Üçsan Counterflow Open Circuit Cooling Towers operate on the counterflow principle, where water and air move in opposite directions, providing high heat…
- Catalog capacity
- 2,000,000kcal/h
- 2,324.4 kW
- Water flow
- 400m³/h
Technical specifications
| Capacity | 2,000,000kcal/h |
|---|---|
| Water Flow Rate | 400m³/h |
| Width | 2,000mm |
| Length | 8,000mm |
| Height | 4,200mm |
| Dry Weight | 3,960kg |
| Operating Weight | 11,000kg |
Catalog values apply to standard conditions; exact performance is calculated per project.
Key Advantages
- High heat transfer efficiency through counterflow operation
- Operation at low wet-bulb approach temperatures
- Reduced space requirement thanks to compact design
- Low energy consumption
- Quiet operation
- Easy maintenance and service access
- Modular design
- Long service life
Casing Material Options
The cooling towers can be manufactured with different material options according to operating conditions and corrosion levels.
- 275 g/m² galvanized coated steel sheet
- 304 grade stainless steel
- 316 grade stainless steel

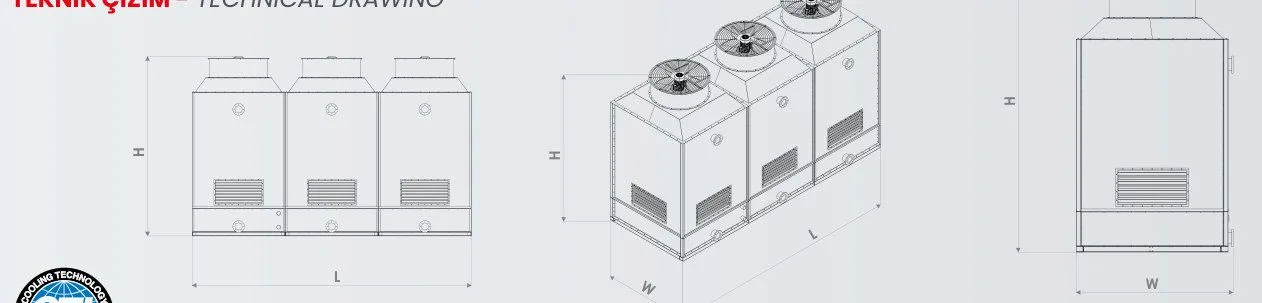

Technical drawing
